Lab 2 Report

Table of contents

Demo test on python notebook

This demo shows how the user will use the code.

Demo directory:

lab2/
└── demo
   ├── demo.ipynb              # main demo demonstrating reading and writing
   └── demo-extensions.ipynb   # demo for extension features

Demo Demo2

viz

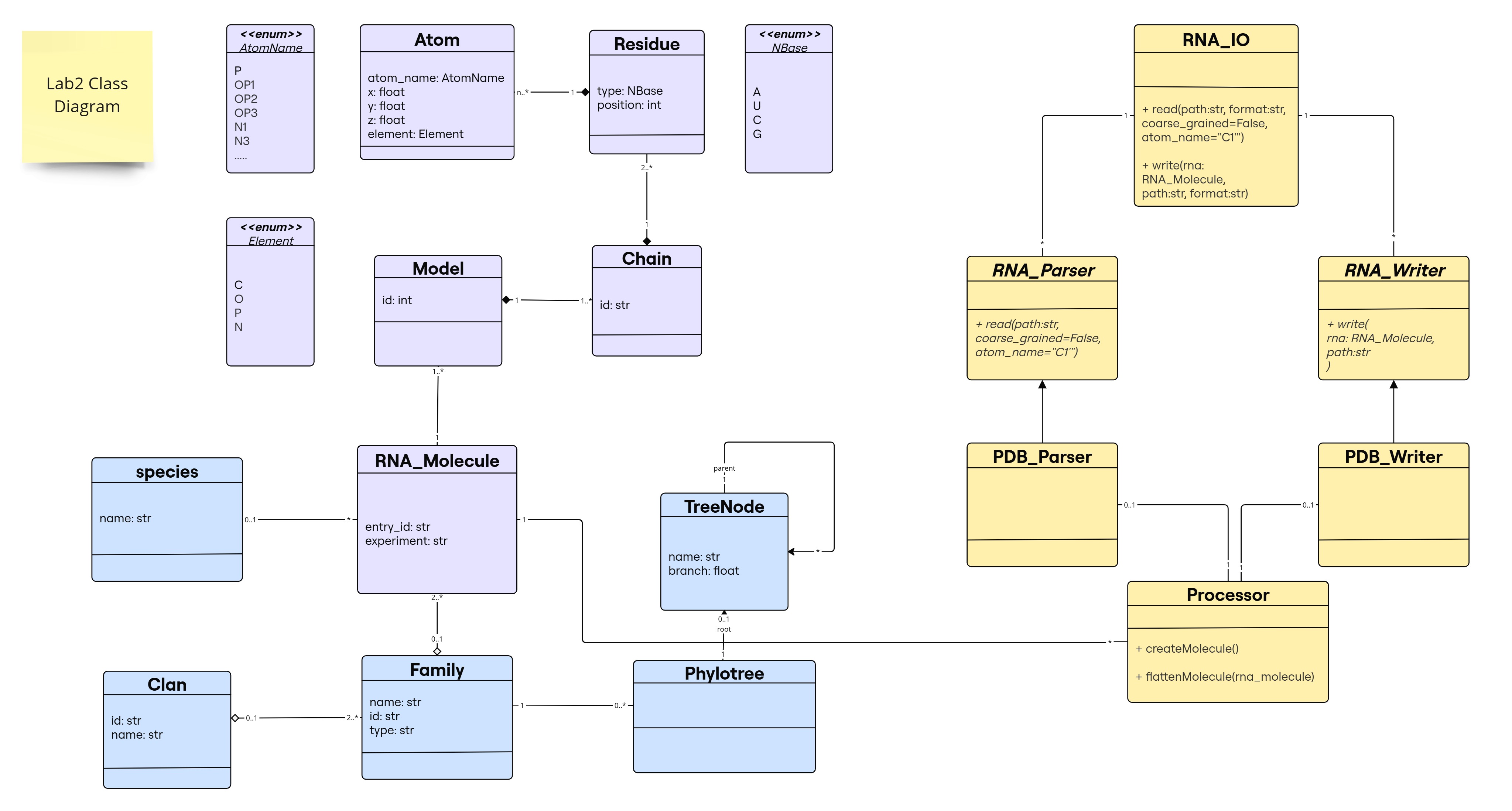

Class Diagram

class diagram

Class Diagram

As a minor enhancement to the previous lab design, we added Species entity to represent a class Species that is associated with RNA_Molecule. Instead of using attribute species in RNA_Molecule class as string type, it is now of Species type. An RNA_Molecule can have 1 Species or none (e.g., if it is synthetic). A Species can have many RNA_Molecule instances.

For the purpose of this lab (reading/writing to a file), new classes have been introduced in yellow in this diagram:

  1. RNA_IO (User Interface for I/O Operations)
    • Serves as the interface for reading and writing RNA sequence files.
    • Provides two methods:
      • read(path, format, coarse_grained=False, atom_name=None) → RNA_Molecule
        • Parses a file and returns an RNA_Molecule instance.
        • Optional parameters:
          • coarse_grained: If True, extracts only a subset of atoms for a simplified representation.
          • atom_name: Allows specifying a particular atom type to extract.
      • write(rna_molecule, file_path, format)
        • Writes an RNA_Molecule instance to a file.
    • Handles multiple file formats by relying on specialized parsers and writers for format-specific processing → can have many parsers and writers.
  2. Parsing
    • RNA_Parser (Abstract Class)
      • Defines the abstract method read(), enforcing child classes to implement format-specific parsing.
    • PDB_Parser (Concrete Class)
      • Implements read(), processing PDB files to create an RNA_Molecule instance.
  3. Writing
    • RNA_Writer (Abstract Class)
      • Defines the abstract method write(), ensuring all writers implement format-specific writing.
    • PDB_Writer (Concrete Class)
      • Implements write(), converting an RNA_Molecule instance into a PDB file.
  4. Processor (RNA Structure Representation Handler)
    • An intermediary between parsers/writers and RNA_Molecule.
    • Converts parsed content into an RNA_Molecule instance.
    • Flattens an RNA_Molecule into a list of atoms for writing.
    • Associations:
      • PDB_Parser uses a Processor to construct RNA_Molecule.
      • PDB_Writer uses a Processor to extract relevant data for writing.
      • An RNA_Molecule can be associated with multiple Processor instances.
      • A Processor can belong to at most one parser or one writer (0..1 relationship).
  5. Design Choice
    • Decoupling:
      • RNA_IO provides a simple interface for users.
      • Parsers and Writers handle format-specific operations.
      • Processor ensures proper RNA representation.
    • Extensibility:
      • New formats (e.g., FASTA) can be supported by adding corresponding RNA_Parser and RNA_Writer subclasses.

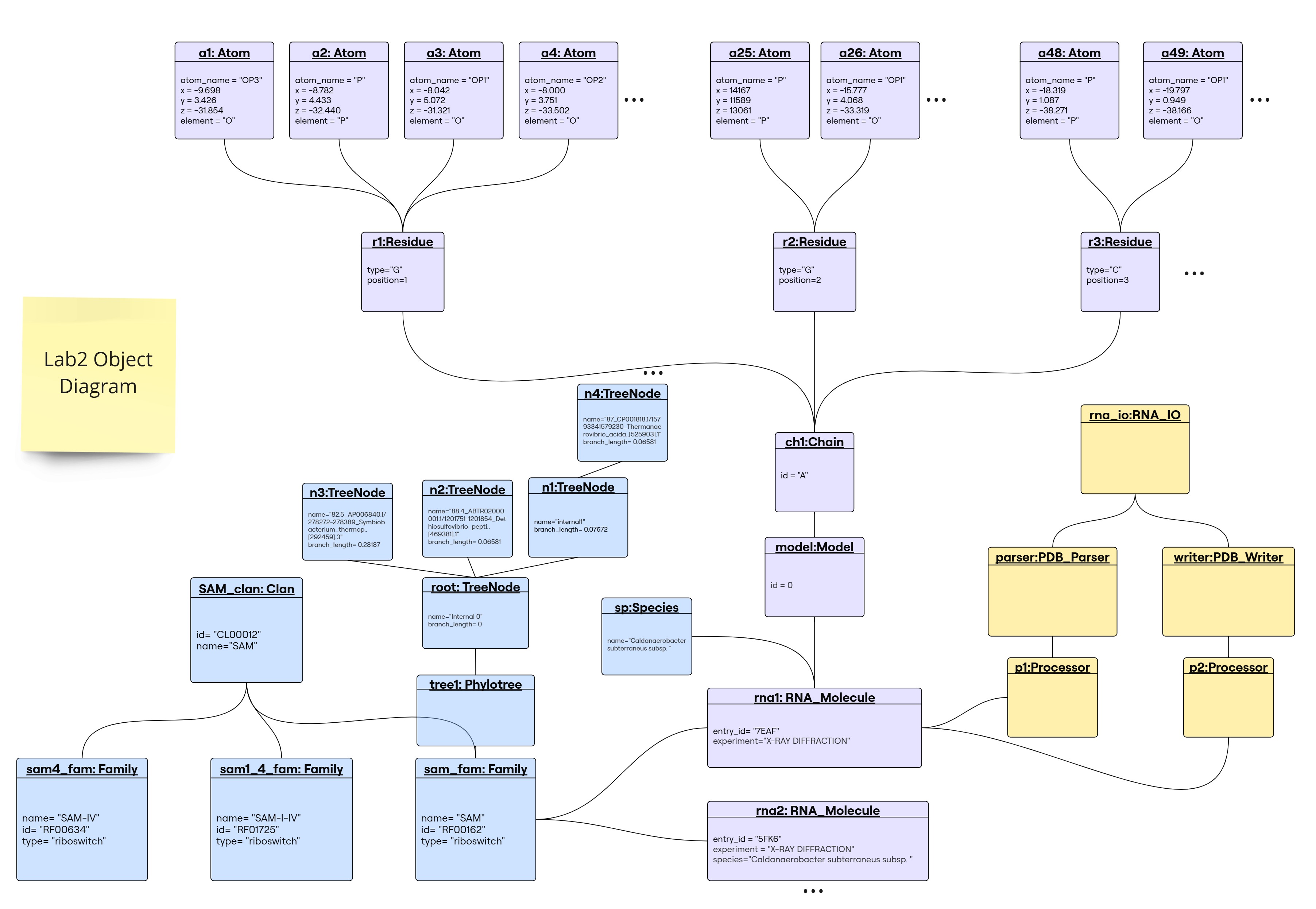

Object Diagram

object diagram

Object Diagram

  • rna_io object instantiated by the user to read and write.
  • pdb_parser object created by rna_io to parse PDB files.
  • pdb_writer object created by rna_io to write PDB files.
  • p1 object of class Processor created by pdb_parser to handle RNA structure representation and create an RNA_Molecule object.
  • p2 object of class Processor created by pdb_writer to extract atoms list from RNA_Molecule for writing (by handling the RNA structure representation).

Implementation

The implementation of the classes is available in the src directory.

The classes are organized in modules and submodules as follows:

src/
├── Families
│   ├── __init__.py
│   ├── clan.py
│   ├── family.py
│   ├── species.py
│   └── tree.py
├── IO
│   ├── RNA_IO.py
│   ├── __init__.py
│   ├── parsers
│   │   ├── PDB_Parser.py
│   │   ├── RNA_Parser.py
│   │   └── __init__.py
│   └── writers
│       ├── PDB_Writer.py
│       ├── RNA_Writer.py
│       └── __init__.py
├── Structure
│   ├── Atom.py
│   ├── Chain.py
│   ├── Model.py
│   ├── RNA_Molecule.py
│   ├── Residue.py
│   └── __init__.py
├── processor.py
└── utils.py

Extensions

Some enhancements on the library design that are worth of mention:

Directory Structure

In lab1, we had a flat directory structure. In lab2, we have introduced a new directory structure to better organize the code into modules and submodules, as seen in Implementation Section. This structure helps in managing the codebase effectively and allows for better organization of related classes and functionalities.

The interdependencies between modules have been handled by appending the src directory to the pythonpath and importing the modules using absolute imports. Another alternative during the development stage (not a deployable library yet) is tu sue the set-pythonpath.sh script in dev/ directory.

Handling 1-N Relationships

Originally, if we have a 1-N relationship between two classes, e.g., one Family have many RNA Molecules, we would store a list of RNA Molecules in the Family class. This is a simple and straightforward approach. However, it has some drawbacks, as it makes us unable to tag each RNA Molecule with the Family it belongs to. To address this issue, we have added an attribute “family” to the RNA Molecule class, that the user has no interaction whatsoever with, but is rather set automatically through the code when the RNA Molecule is added to a Family.

[!IMPORTANT] To ensure this behavior we have either not provided a setter for this attribute or raised a warning message if the user tries to set it manually. A private method has been implemented that acts as a setter for this attribute in the other class (e.g., RNA_Molecule’s _add_family() method will be used in Family’s add_RNA() method through: fam1.add_RNA(rna1); behind the scenes: rna1._add_family(self) ).

This was done in all classes that have a 1-N relationship with another class.

Species class

In order to account for instanciated species, and because we dont wanna lose track of what we have created and the connection to each species with their types, we have implemenented a class attribute declared_species that ensures:

  • unicity of a species instance
  • ability to access and point to equivalent species instances

This is particularly helpful with the 1-N relationship Species have with RNA_Molecule instances. 1 RNA-Molecule instance can be found in 1 Species, but 1 Species can have multiple RNA_Molecule instances. Thus we have added an attribute in Species that stores a dictionary of RNA_Molecule instances, with the key being the RNA_Molecule instance’s id (to enhance lookup speed using the dict’s inherent hashing compared to looping through a list). And for the relationship to be well implemented, we have added a species attribute in the RNA_Molecule class that points to the Species instance it belongs to. The latter is only set by appending an RNA_Molecule instance to a Species instance, and not by setting it directly (automatic handling). In this way, the declared_species class attribute ensures that one species instance can have multiple RNA_Molecule instances.
e.g., rna molecule 1 associated with E.coli species, rna molecule 2 associated with E.coli species, we would find only one E.coli species instance in the declared_species attribute, with the two RNA_Molecule instances in its rna molecules dictionary corresponding to rna1 and rna2

A species class have been implemented to account for them as entities that might have several RNA moelcules associated with them. To keep track of previously created species, we have implemented a class attribute declared_species that ensures unicity of species instances and ability to access and point to equivalent species instances. This is particularly helpful with the 1-N relationship between Species and RNA molecule. 1 RNA molecule instance can be found in 1 Species, but 1 Species can have multiple RNA molecule instances, so an instanciated species would have a dictionary of RNA molecule instances, with the key being the RNA molecule instance’s id, and value of type RNA_Molecule. This way, we can easily access the RNA molecule instances associated with a species instance ( a dict instead of a list to enhance lookup speed using the dict’s inherent hashing compared to looping through a list).

And for the relationship to be well implemented, we have added a species attribute in the RNA_Molecule class that points to the Species instance it belongs to. The latter is only set by appending an RNA_Molecule instance to a Species instance, and not by setting it directly (automatic handling). In this way, the declared_species class attribute ensures that one species instance can have multiple RNA_Molecule instances.

e.g., rna molecule 1 associated with E.coli species, rna molecule 2 associated with E.coli species, we would find only one E.coli species instance in the declared_species attribute, with the two RNA_Molecule instances in its rna molecules dictionary corresponding to rna1 and rna2

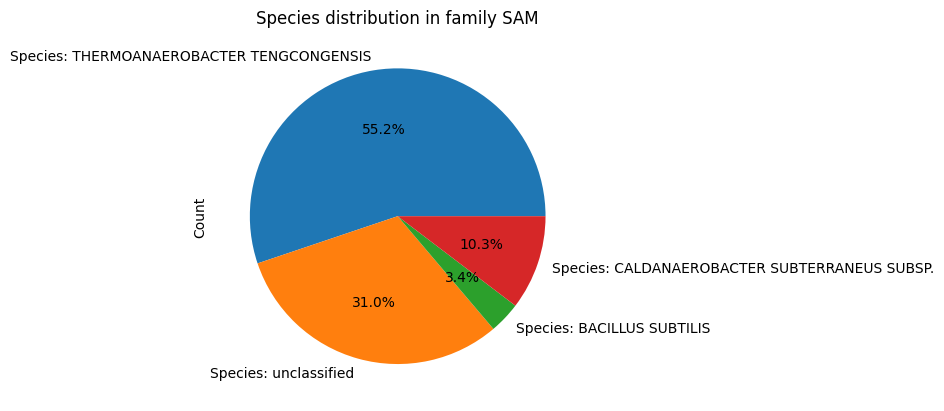

Since Species has a relationship with RNA_Molecule, and Family has a relationship with RNA_Molecule, an additional functionality that is now avaliable to teh user is the ability to see the distribution of species in a family. This is done by calling the distribution() method in the Family class, which returns a data frame of species and the number of RNA_Molecule instances associated with them. For visualiztion, the user can call the plot_distribution() method in the Family class, which plots a pie plot of the species distribution.

fam=Family(id='SAM',name='SAM')
fam.plot_distribution()

dist

Code Explanation

RNA_IO Class

  • Responsible for managing the input and output operations of RNA molecule data. It provides methods for reading RNA molecule representations from files and writing them back to files in various formats.

  • This is the class that the user interacts with to read and write RNA molecule data.

  • Constructor:

    The class is initialized with two private dictionaries:

    • __parsers: Contains instances of parsers for different file formats. Currently, it includes the PDB format parser.
    • __writers: Contains instances of writers for different file formats. Currently, it includes the PDB format writer.
          def __init__(self):
          self.__parsers = {"PDB": PDB_Parser()}
          self.__writers = {"PDB": PDB_Writer()}

  • Methods:

    1. read(path_to_file, format, coarse_grained=False, atom_name="C1'")
      • Purpose: Reads a file of the specified format and returns an RNA_Molecule object.
      • Parameters:
        • path_to_file: The path to the file to be read.
        • format: The format of the file being read (e.g., “PDB”).
        • coarse_grained: A boolean flag indicating whether to use a coarse-grained representation, defaults to False.
        • atom_name: The name of the atom to be read, defaults to "C1'" because:
          • It defines the sugar ring attachment point to the base.
          • It’s commonly used in coarse-grained RNA models.
          • It provides a stable reference point per residue.
      • Returns: An RNA_Molecule instance.
      • Raises: ValueError if the specified format is not supported.
       def read(self, path_to_file, format, coarse_grained=False, atom_name="C1'"):
     if format not in self.__parsers:
         raise ValueError(f"Format {format} is not supported.")
     parser = self.__parsers[format]
     return parser.read(path_to_file, coarse_grained, atom_name)

      The method first checks if the specified format is supported by the RNA_IO instance. If the format is supported, it retrieves the corresponding parser from the __parsers dictionary and calls its read method to parse the file and return an RNA_Molecule instance.

    2. write(rna_molecule, path_to_file, format)
      • Purpose: Writes an RNA_Molecule object to a file of the specified format.
      • Parameters:
        • rna_molecule: The RNA molecule object to be written to the file.
        • path_to_file: The path where the file will be written.
        • format: The format of the file to be written (e.g., “PDB”).
      • Raises: ValueError if the specified format is not supported.
      • Calls the write method of the corresponding writer for the specified format to write the RNA molecule to the file.

RNA_Parser and RNA_Writer Classes

  • These are abstract classes that define the interface for parsers and writers, respectively. They enforce the implementation of the read and write methods in concrete subclasses.

      class RNA_Parser(ABC):

      @abstractmethod
      def read(self, path_to_file):
          pass

      class RNA_Writer(ABC):

      @abstractmethod
      def write(self, rna_molecule, path_to_file):
          pass

PDB_Parser Class

  • Concrete subclass of RNA_Parser that implements the read method for parsing PDB files and creating an RNA_Molecule instance.

  • read method:

      def read(self, path_to_file, coarse_grained=False, atom_name="C1'"):
      """
      Reads a PDB file and returns the RNA molecule object.
      """
      processor=Processor() #To handle the molecule representation in the processor class

      #Extract RNA_Molecule Attributes and store them in the processor object
      molecule_info = self._extract_molecule_info(path_to_file)
      processor.molecule_info(*molecule_info)

      #Extract the atoms and store them in the processor object
      with open(path_to_file, 'r') as pdb_file:

          model_id = 0

          for line in pdb_file:
              if line.startswith("MODEL"):
                  model_id = int(line.split()[1])  #Extract model ID

              elif line.startswith("ATOM"):
                  if coarse_grained:
                      if line[12:16].strip() == atom_name:
                          atom_info = self._extract_atom_info(line)
                          if atom_info is not None:
                              processor.atom_info(*atom_info, model_id)
                  else:
                      atom_info = self._extract_atom_info(line)
                      if atom_info is not None: #It is None if the residue is not a nucleotide
                          processor.atom_info(*atom_info, model_id)

      return processor.createMolecule() #Create the RNA_Molecule object
    1. Processor Initialization:
      • A Processor instance is created to handle the molecule representation.
    2. Extract Molecule Info:
      • The method _extract_molecule_info is called to extract the relevant information about the RNA molecule from the PDB file.
      • The extracted information is stored in the Processor object.
    3. Extract Atoms:
      • The PDB file is read line by line.
      • If the line starts with “MODEL”, the model ID is extracted.
      • If the line starts with “ATOM”, the atom information is extracted.
      • If coarse_grained is True, only atoms with the specified atom_name are extracted.
      • The extracted atom information is stored in the Processor object.
    4. Create Molecule:
      • The Processor object is used to create an RNA_Molecule instance.
      • The RNA_Molecule instance is returned.

  • _extract_molecule_info private method:

    • This method reads the PDB file line by line and extracts the PDB ID, experiment, and species information.
    • The extracted information is returned as a tuple.
    • If the information is not found, the corresponding attribute is set to None.
    • The method stops reading the file once it encounters a line starting with “REMARK” or “ATOM”.
    • This method is called by the read method to extract the molecule information before extracting the atoms.
    • The extracted information is stored in the Processor object for creating the RNA_Molecule instance.
    • It basically extracts the essential information needed to create an RNA_Molecule object.
    • It can be easily extended to extract additional information if needed or remove unnecessary data, without requiring any changes to the read method.

  • _extract_atom_info private method:

          def _extract_atom_info(self, line):

      residue_name = line[17:20].strip()
      if residue_name not in ['A', 'C', 'G', 'U']:
          return None #Not a nucleotide
      residue_id = int(line[22:26].strip())
      i_code = line[26:27].strip()

      atom_name = line[12:16].strip()
      altloc = line[16:17].strip()
      x, y, z = map(float, [line[30:38], line[38:46], line[46:54]])
      occupancy = float(line[54:60].strip())
      temp_factor = float(line[60:66].strip()) if line[60:66].strip() else None
      element = line[76:78].strip()
      charge = line[78:80].strip()

      chain_id = line[21]

      return atom_name, x, y, z, element, residue_name, residue_id, chain_id, altloc, occupancy, temp_factor, i_code, charge
    • This method extracts the atom information from an atom line in a PDB file.
    • It returns a tuple containing the atom information.
    • If the residue is not a valid nucleotide (A, C, G, U), it returns None.
    • The extracted atom information includes the atom name, coordinates, element, residue name, residue ID, chain ID, alternate location indicator, occupancy, temperature factor, insertion code, and charge.
    • This method is called by the read method to extract atom information for creating the RNA_Molecule instance.
    • It can be easily extended to extract additional atom information if needed or remove unnecessary data, without requiring any changes to the read method.

PDB_Writer Class

  • Concrete subclass of RNA_Writer that implements the write method for writing RNA_Molecule objects to PDB files.

  • write method:

      def write(self, rna_molecule, path_to_file):
      """
      Writes the RNA molecule object to a PDB-like file.
      Format:
      <Record name> <Serial> <Atom name> <AltLoc> <Residue name> <ChainID> <Residue sequence number> <ICode> <X> <Y> <Z> <Occupancy> <TempFactor> <Element> <Charge>
      """
      processor=Processor()
      atoms = processor.flattenMolecule(rna_molecule)  #Get a flat list of atoms

      with open(path_to_file, "w") as f:

          #Write molecule information
          molecule_info = self._format_molecule_info(rna_molecule)
          f.write(molecule_info)

          #Write atom information

          current_model = None

          for model_id, *atom_info in atoms:
              #Write MODEL record when a new model starts
              #If the model ID is 0, it means that there is only one model and no MODEL record is needed
              if model_id !=0 and model_id != current_model:
                  if current_model is not None:
                      f.write("ENDMDL\n")  #Close previous model
                  f.write(f"MODEL     {model_id}\n")
                  current_model = model_id

              #Write the formatted atom line
              pdb_line = self._format_atom_info(*atom_info)
              f.write(pdb_line)

          if model_id!=0:
              f.write("ENDMDL\n")  #Close the last model
          f.write("END\n")  #End of PDB file

      print(f"RNA molecule written to {path_to_file}")
    1. Processor Initialization:
      • A Processor instance is created because it handles the molecule representation.
    2. Flatten Molecule:
      • The Processor object is used to flatten the RNA_Molecule object into a list of atoms.
    3. Write Molecule Info:
      • The method _format_molecule_info is called to format the molecule information for writing to the PDB file.
      • The formatted molecule information is written to the file.
    4. Write Atom Info:
      • The atoms are iterated over, and the atom information is formatted using the method _format_atom_info for writing to the PDB file.
      • The formatted atom information is written to the file.
    5. Write MODEL Records:
      • If the model ID changes, a new MODEL record is written.
      • The MODEL record is closed when a new model starts.
    6. End of File:
      • The PDB file is closed with an “END” record.
  • _format_molecule_info private method:
    • This method formats the molecule information (entry ID, experiment, species) in PDB format.
    • It extracts the relevant information from the RNA_Molecule object.
    • It formats the HEADER, SOURCE, and EXPDTA lines for the PDB file.
    • The formatted molecule information is returned as a string.
    • This method is called by the write method to write the molecule information to the PDB file.
    • It can be easily extended to include additional information or modify the formatting without requiring changes to the write method.

  • _format_atom_info private method:

    • This method formats an atom entry into PDB format.
    • It extracts the relevant information from the atom such as atom attributes, residue, chain.
    • It formats them according to the PDB format specification.
    • The formatted atom information is returned as a string.
    • This method is called by the write method to format the atom information for writing to the PDB file.
    • It can be easily extended to include additional atom information or modify the formatting without requiring changes to the write method.

Processor Class

  • The Processor class acts as an intermediary between the parsers/writers and the RNA_Molecule class.
  • It is used to hanldle the RNA structure representation.
  • It contains methods to store the parsed content molecule_info and atom_info.
  • It is responsible for converting the parsed content into an RNA_Molecule instance: createMolecule() method.
  • Also responsible for flattening an RNA_Molecule into a list of atoms for writing: flattenMolecule(rna_molecule).

Decoupling Analysis

The decoupling of parsing/writing from the RNA structure representation was demonstrated in the design and the implementation.

Back to top

Copyright © 2024-2025 Joelle ASSY & Rayane ADAM. Distributed under the MIT License.

This site uses Just the Docs, a documentation theme for Jekyll.
