Lab 3 Report

Table of contents

First Implementation

This implementation is in the branch previous-model-extension .

branch1

In this lab, we extended our previous model to include the following functionalities:

First, we kept our previous model and extended it with the minimal changes possible without using the design patterns.

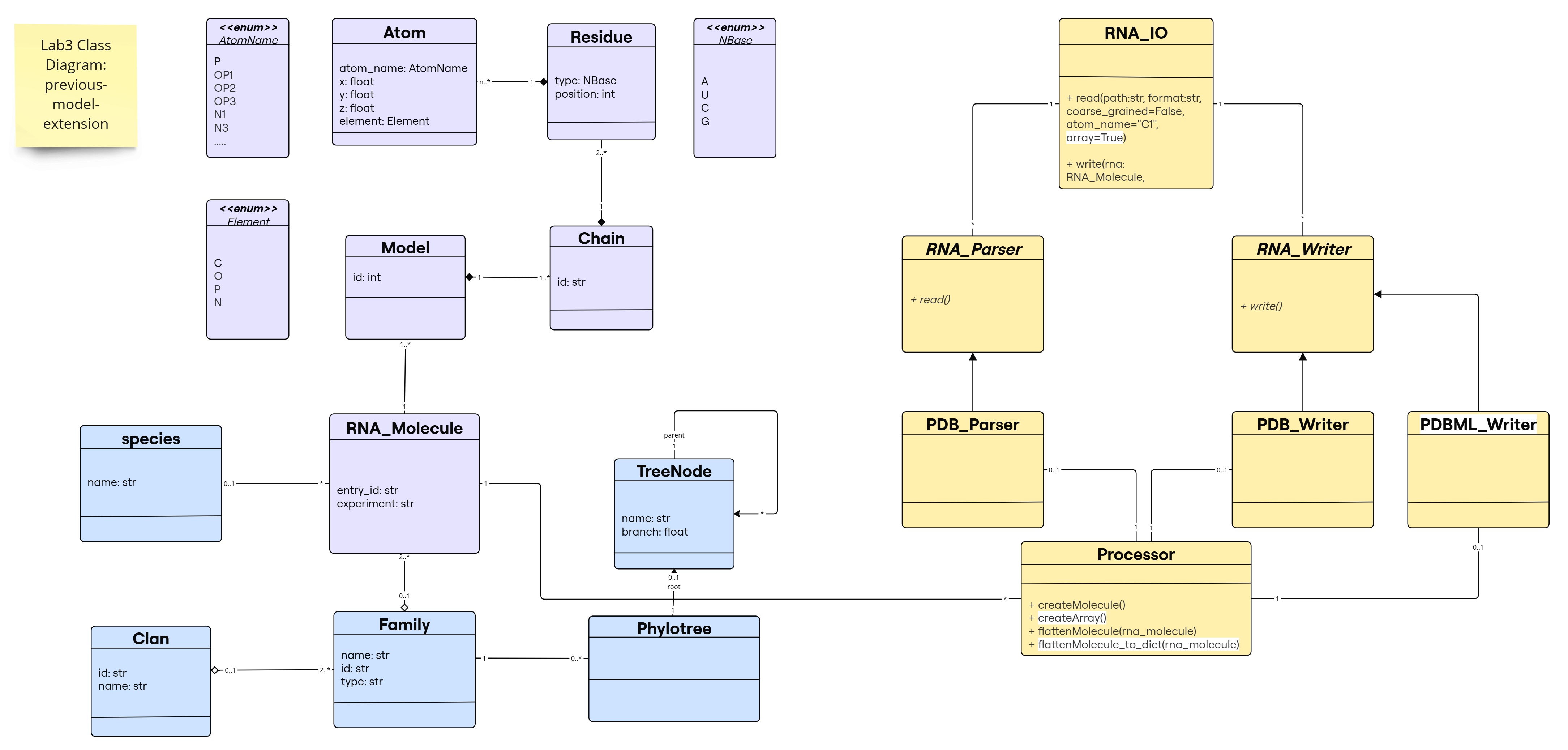

Class Diagram for the Previous-Model-Extension

Class-Diagram

The new changes are highlighted in white; note that flattenMolecule_to_dict() is a new method to provide an extra utility to the Processor class, not mandatory for the implementation (e.g., some libraries like numpy, pandas, etc. provide similar functionalities that transforms their main objects to different types of data structures).

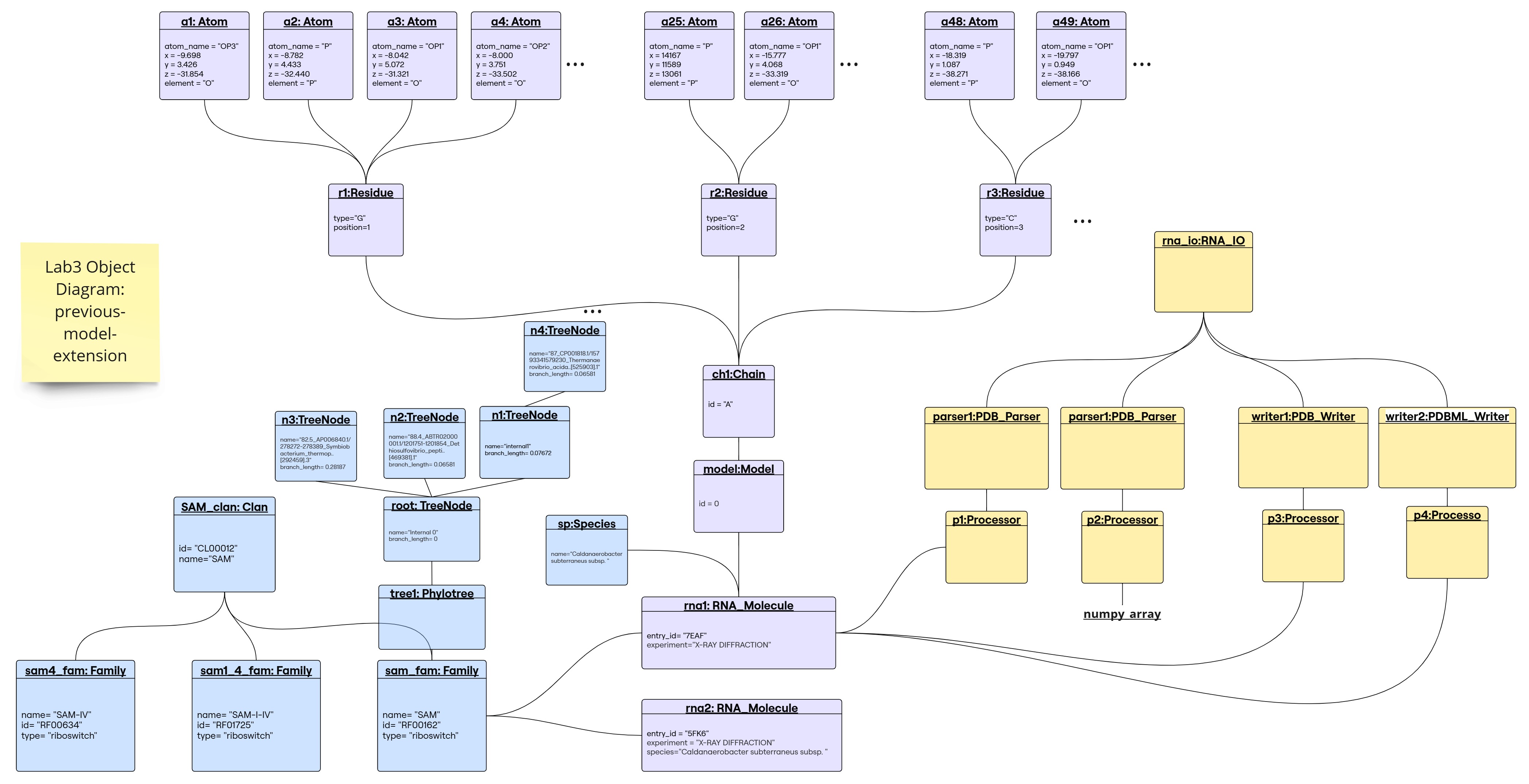

Object Diagram for the Previous-Model-Extension

Object-Diagram

1. Parser returns a numpy array

For this, we added a function in the Processor class called: createArray() that returns the required numpy array representation of an RNA Molecule that can have multiple models.

Note: In our previous implementation, the parser will store the atom information in a list atoms inside the Processor class.

createArray() in Processor class:

read() in PDB_Parser class: We added a boolean argument array to the read() function and set it to True by default. If the argument is True, the function will return the numpy array representation of the molecule, otherwise it will create the molecule object as before. We did not change anything in the read() function, we just added the following at the end:

if array:
    return processor.createArray()
else:
    return processor.createMolecule()

Code Usage An example can be found in the notebook reading.ipynb from the other branch. Demo

We read a molecule that contains 1 model and another molecule that contains multiple models, and showed the resulting arrays. A brief example:

rna_io=RNA_IO()

pdb_path_test=pathify_pdb("7eaf")

mol=rna_io.read(pdb_path_test, "PDB")

print(mol.shape)
print(mol[0, -1, 0, :])

The output:

(1, 94, 24, 3)
[-10.06    7.177 -49.234]

2. Writing Structures into PDML/XML format

File format description:

An PDBML file is an XML file that contains protein/nucleic acid structure information within an xml format. This is an efficient data storing format is widely used in databases and software tools to store and exchange data files in a structured manner. It was introduced to PDBe as the “PDBML” format by Westbrook et al. in a 2005 in a paper published in Bioinformatics entitled “PDBML: the representation of archival macromolecular structure data in XML”1.

In python, writing and handling xml files is done without the use of libraries liek xml.
Starting off by exploring this file (example used is 7eaf.xml taken from pdb), we notice the following structure

<PDBx:datablock xmlns:PDBx="http://pdbml.pdb.org/schema/pdbx-v50.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" datablockName="7EAF" xsi:schemaLocation="http://pdbml.pdb.org/schema/pdbx-v50.xsd pdbx-v50.xsd">
  ...
</PDBx:datablock>

with all these tags included in the file:

grep -e '^   <PDBx:' 7eaf.xml #to retrive the list

Westbrook J, Ito N, Nakamura H, Henrick K, Berman HM. Bioinformatics, 2005, 21(7):988-992. PubMed:15509603 full text

The <PDBx:atom_siteCategory> tag contains all the information about the atoms in the structure, including all the hierarchical information model > chain > residue > atom. Thus the structure is solely defined by a list of atoms, in this format each will be represented by a tag <PDBx:atom_site>.

<PDBx:datablock xmlns:PDBx="http://pdbml.pdb.org/schema/pdbx-v50.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" datablockName="7EAF" xsi:schemaLocation="http://pdbml.pdb.org/schema/pdbx-v50.xsd pdbx-v50.xsd">
  <PDBx:atom_siteCategory>
    <PDBx:atom_site id="1">
    ...
    </PDBx:atom_site>
    <PDBx:atom_site id="2">
    ...
  </PDBx:atom_siteCategory>
</PDBx:datablock>

[!IMPORTANT] The atom_siteCategory tag is the only category that reflects the information that we’re capturing in this library, whether thorugh the RNA_Molecule object or the numpy array representation of it. This is the only category that will be included in the xml file. Others include information about bonds, symmetry, experimental setting and other metadata that is not captured in our object.

This is how the hierarchy leading to an atom representation is portrayed in the .xml file.

PDBx:datablock
├── datablockName
├── xsi:schemaLocation
└── PDBx:atom_siteCategory
    └── PDBx:atom_site
        ├── id
        ├── PDBx:B_iso_or_equiv
        ├── PDBx:Cartn_x
        ├── PDBx:Cartn_y
        ├── PDBx:Cartn_z
        ├── PDBx:auth_asym_id
        ├── PDBx:auth_atom_id
        ├── PDBx:auth_comp_id
        ├── PDBx:auth_seq_id
        ├── PDBx:group_PDB
        ├── PDBx:label_alt_id
        ├── PDBx:label_asym_id
        ├── PDBx:label_atom_id
        ├── PDBx:label_comp_id
        ├── PDBx:label_entity_id
        ├── PDBx:label_seq_id
        ├── PDBx:occupancy
        ├── PDBx:pdbx_PDB_model_num
        └── PDBx:type_symbol

Notice a slight difference between the representation of an atom with $occupancy=1$ and an atom with $occupancy<1$ (having an altrnate location). The difference is the presence of the label_alt_id tag. This will be taken care of while writing the file. This being said, each alternative location of an atom is cosidered a different atom in the file (with PDBx:atom_site id being $+1$ the id of the previous alternate location).

Atom with no alternative location Atom with alternative location
<PDBx:atom_site id="1">
  <PDBx:B_iso_or_equiv>110.87</PDBx:B_iso_or_equiv>
  <PDBx:Cartn_x>-9.698</PDBx:Cartn_x>
  <PDBx:Cartn_y>3.426</PDBx:Cartn_y>
  <PDBx:Cartn_z>-31.854</PDBx:Cartn_z>
  <PDBx:auth_asym_id>A</PDBx:auth_asym_id>
  <PDBx:auth_atom_id>OP3</PDBx:auth_atom_id>
  <PDBx:auth_comp_id>G</PDBx:auth_comp_id>
  <PDBx:auth_seq_id>1</PDBx:auth_seq_id>
  <PDBx:group_PDB>ATOM</PDBx:group_PDB>
  <PDBx:label_alt_id xsi:nil="true"/>
  <PDBx:label_asym_id>A</PDBx:label_asym_id>
  <PDBx:label_atom_id>OP3</PDBx:label_atom_id>
  <PDBx:label_comp_id>G</PDBx:label_comp_id>
  <PDBx:label_entity_id>1</PDBx:label_entity_id>
  <PDBx:label_seq_id>1</PDBx:label_seq_id>
  <PDBx:occupancy>1.0</PDBx:occupancy>
  <PDBx:pdbx_PDB_model_num>1</PDBx:pdbx_PDB_model_num>
  <PDBx:type_symbol>O</PDBx:type_symbol>
</PDBx:atom_site>

<PDBx:atom_site id="170">
  <PDBx:B_iso_or_equiv>66.5</PDBx:B_iso_or_equiv>
  <PDBx:Cartn_x>-14.543</PDBx:Cartn_x>
  <PDBx:Cartn_y>-18.821</PDBx:Cartn_y>
  <PDBx:Cartn_z>-25.673</PDBx:Cartn_z>
  <PDBx:auth_asym_id>A</PDBx:auth_asym_id>
  <PDBx:auth_atom_id>P</PDBx:auth_atom_id>
  <PDBx:auth_comp_id>A</PDBx:auth_comp_id>
  <PDBx:auth_seq_id>9</PDBx:auth_seq_id>
  <PDBx:group_PDB>ATOM</PDBx:group_PDB>
  <PDBx:label_alt_id>A</PDBx:label_alt_id>
  <PDBx:label_asym_id>A</PDBx:label_asym_id>
  <PDBx:label_atom_id>P</PDBx:label_atom_id>
  <PDBx:label_comp_id>A</PDBx:label_comp_id>
  <PDBx:label_entity_id>1</PDBx:label_entity_id>
  <PDBx:label_seq_id>9</PDBx:label_seq_id>
  <PDBx:occupancy>0.44</PDBx:occupancy>
  <PDBx:pdbx_PDB_model_num>1</PDBx:pdbx_PDB_model_num>
  <PDBx:type_symbol>P</PDBx:type_symbol>
</PDBx:atom_site>

in this example id 171 is alt location B of the same atom in 170, and shows different occupancy

Implementation: object to xml

Thanks to the hierarchical class design of the molecule object, we’re able to retrieve all information needed describing an atom, for each atom in the molecule.

In porcessor, this method flattenMolecule_to_dict takes an object and returns a list of atom dictionaries, where the keys of each dictionary are named exactly as the tags in the xml file.

[!NOTE] It practically has the same behavior as flattenMolecule but returns a list of dictionaries instead of a list of atom info and objects (allowing diverse output formats).

This way, we can easily create the xml file by iterating over the list of atoms and creating the corresponding tags.

    def flattenMolecule_to_dict(self,rna_molecule:RNA_Molecule):
        '''
        rna_molecule: RNA_Molecule object -> RNA molecule to be flattened -> list of atom dictionaries
        '''
        atoms_list = []

        for model_num,_ in enumerate(rna_molecule.get_models()):  #--looping through all models
            model=rna_molecule.get_models()[_] # --model object from dict key

            for chain in model.get_chains().values(): #--looping through all chains
                for residue in chain.get_residues().values(): #--looping through all residues
                    for atom_key, atom in residue.get_atoms().items(): #--looping through all atoms
                        atom_id, alt_id = atom_key  # unpacking atom key (alt_id is '' if no alt location)
                        # --keys defined identically to pdbml format, values extracted directly from atom object
                        atom_data = {
                            "atom_id": str(len(atoms_list) + 1),  # Assign a sequential ID
                            "B": str(atom.temp_factor),
                            "x": str(atom.x),
                            "y": str(atom.y),
                            "z": str(atom.z),
                            "chain_id": chain.id,
                            "atom_id": atom_id,
                            "residue_type": residue.type.name,
                            "residue_pos": str(residue.position),
                            "alt_id": None if alt_id == "" else alt_id,
                            "occupancy": str(atom.occupancy),
                            "model_no": model_num+1,
                            "atom_element": atom.element.name
                        }
                        atoms_list.append(atom_data)
        return atoms_list

To convert to PDBML, xml formatting private functions have been implemented in PDBML_Writer submodule.

# --helper methods
    def _wrap_str_to_xml(self,s,name='pdbml_output.xml'):
        with open(name, "w") as f:
            f.write(s)

    def _format_atom_info(self, atoms_list,entry_id):
        '''
        formats a list of atoms dicts into XML format
        '''
        s='''<?xml version="1.0" encoding="UTF-8" ?>
<PDBx:datablock datablockName="'''+entry_id+'''"
   xmlns:PDBx="http://pdbml.pdb.org/schema/pdbx-v50.xsd"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://pdbml.pdb.org/schema/pdbx-v50.xsd pdbx-v50.xsd">'''
        s+='\n\t<PDBx:atom_siteCategory>\n'
        for atom in atoms_list:
            s+='\t\t<PDBx:atom_site id="'+atom["atom_id"]+'">\n'
            s+='\t\t\t<PDBx:B_iso_or_equiv>'+str(atom['B'])+'</PDBx:B_iso_or_equiv>\n'
            s+='\t\t\t<PDBx:Cartn_x>'+str(atom['x'])+'</PDBx:Cartn_x>\n'
            s+='\t\t\t<PDBx:Cartn_y>'+str(atom['y'])+'</PDBx:Cartn_y>\n'
            s+='\t\t\t<PDBx:Cartn_z>'+str(atom['z'])+'</PDBx:Cartn_z>\n'
            s+='\t\t\t<PDBx:auth_asym_id>'+atom['chain_id']+'</PDBx:auth_asym_id>\n'
            s+='\t\t\t<PDBx:auth_atom_id>'+atom['atom_id']+'</PDBx:auth_atom_id>\n'
            s+='\t\t\t<PDBx:auth_comp_id>'+atom['residue_type']+'</PDBx:auth_comp_id>\n'
            s+='\t\t\t<PDBx:auth_seq_id>'+str(atom['residue_pos'])+'</PDBx:auth_seq_id>\n'
            s+='\t\t\t<PDBx:group_PDB>ATOM</PDBx:group_PDB>\n'
            if atom['alt_id'] is not None:
                s+='\t\t\t<PDBx:label_alt_id xsi:nil="true" />\n'
            else:
                atom['alt_id']='A'
            s+='\t\t\t<PDBx:label_asym_id>'+atom['alt_id']+'</PDBx:label_asym_id>\n'
            s+='\t\t\t<PDBx:label_atom_id>'+atom['atom_id']+'</PDBx:label_atom_id>\n'
            s+='\t\t\t<PDBx:label_comp_id>'+atom['residue_type']+'</PDBx:label_comp_id>\n'
            s+='\t\t\t<PDBx:label_entity_id>1</PDBx:label_entity_id>\n'
            s+='\t\t\t<PDBx:label_seq_id>'+str(atom['residue_pos'])+'</PDBx:label_seq_id>\n'
            s+='\t\t\t<PDBx:occupancy>'+str(atom['occupancy'])+'</PDBx:occupancy>\n'
            s+='\t\t\t<PDBx:pdbx_PDB_model_num>'+str(atom['model_no'])+'</PDBx:pdbx_PDB_model_num>\n'
            s+='\t\t\t<PDBx:type_symbol>'+atom['atom_element']+'</PDBx:type_symbol>\n'
            s+='\t\t</PDBx:atom_site>\n'
        s+='\t</PDBx:atom_siteCategory>\n'
        s+='</PDBx:datablock>'
        return s

Code usage:

mol: RNA_Molecule #suppose a declared instance of RNA_Molecule

rna_io=RNA_IO()
rna_io.write(mol, "7eaf_object.xml",'PDBML')

example output:

cat 7eaf_object.xml

<?xml version="1.0" encoding="UTF-8" ?>
<PDBx:datablock datablockName="7EAF"
   xmlns:PDBx="http://pdbml.pdb.org/schema/pdbx-v50.xsd"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://pdbml.pdb.org/schema/pdbx-v50.xsd pdbx-v50.xsd">
	<PDBx:atom_siteCategory>
		<PDBx:atom_site id="OP3">
			<PDBx:B_iso_or_equiv>110.87</PDBx:B_iso_or_equiv>
			<PDBx:Cartn_x>-9.698</PDBx:Cartn_x>
			<PDBx:Cartn_y>3.426</PDBx:Cartn_y>
			<PDBx:Cartn_z>-31.854</PDBx:Cartn_z>
			<PDBx:auth_asym_id>A</PDBx:auth_asym_id>
			<PDBx:auth_atom_id>OP3</PDBx:auth_atom_id>
			<PDBx:auth_comp_id>G</PDBx:auth_comp_id>
			<PDBx:auth_seq_id>1</PDBx:auth_seq_id>
			<PDBx:group_PDB>ATOM</PDBx:group_PDB>
			<PDBx:label_asym_id>A</PDBx:label_asym_id>
			<PDBx:label_atom_id>OP3</PDBx:label_atom_id>
			<PDBx:label_comp_id>G</PDBx:label_comp_id>
			<PDBx:label_entity_id>1</PDBx:label_entity_id>
			<PDBx:label_seq_id>1</PDBx:label_seq_id>
			<PDBx:occupancy>1.0</PDBx:occupancy>
			<PDBx:pdbx_PDB_model_num>1</PDBx:pdbx_PDB_model_num>
			<PDBx:type_symbol>O</PDBx:type_symbol>
		</PDBx:atom_site>
...

a minor addition to RNA_IO class was made to include the option of writing in PDBML format.

class RNA_IO:
    def __init__(self):
        ...
        self.__writers={"PDB": PDB_Writer(),'PDBML': PDBML_Writer(),'XML': PDBML_Writer()}

Parallelism with PDB_Writer

rna_io.write(mol, “7eaf_object.xml”,’PDBML’) #also works by specifying XML rna_io.write(mol, “7eaf_object.pdb”,’PDB’)



| PDB_Writer | PDBML_Writer |
|------------|--------------|
| inherits RNA_Writer abstract class | inherits RNA_Writer abstract class |
| `write(molecule: RNA_Molecule, file_path: str)` | `write(molecule: RNA_Molecule, file_path: str)` |
| takes an RNA_Molecule object | takes an RNA_Molecule object |
| uses processor instance to get the atom information | uses processor instance to get the atom information |
| uses processor.flattenMolecule() | uses processor.flattenMolecule_to_dict() |
| has format specific private method `_format_atom_info()` and `_format_molecule_info` | has format specific private method `_format_atom_info()` and `_wrap_str_to_xml()` |
| writes the pdb file | writes the pdbml file |



## Main Implementation using Design Patterns

The implementation of the classes is available in the [src](https://github.com/rna-oop/2425-m1-geniomhe-group-6/tree/main/lab3/src) directory in the `main` branch.

### Demo

For a demonstration of the Builder and Visitor Design Patterns, you can check the notebook [reading-writing.ipynb](/2425-m1-geniomhe-group-6/lab3/demo/reading.ipynb)

[![Demo](https://img.shields.io/badge/open_in_jupyter_view-reading--writing.ipynb-orange)](./demo/reading_writing.ipynb)



### Library Structure

In this lab, we added `Processing` module that contains the classes of the `Builder Design Pattern` and `visitors_writers` module that contains the classes of the `Visitor Design Pattern`inside `IO` module.

The classes are organized in modules and submodules as follows:

```text
.
├── Families
│   ├── __init__.py
│   ├── clan.py
│   ├── family.py
│   ├── species.py
│   └── tree.py
├── IO
│   ├── RNA_IO.py
│   ├── __init__.py
│   ├── parsers
│   │   ├── PDB_Parser.py
│   │   ├── RNA_Parser.py
│   │   ├── __init__.py
│   └── visitor_writers         #--new
│       ├── __init__.py
│       ├── pdb_visitor.py
│       ├── visitor.py
│       └── xml_visitor.py
├── Processing                  #--new
│   ├── ArrayBuilder.py
│   ├── Builder.py
│   ├── Director.py
│   ├── ObjectBuilder.py
│   └── __init__.py
├── Structure
│   ├── Atom.py
│   ├── Chain.py
│   ├── Model.py
│   ├── RNA_Molecule.py
│   ├── Residue.py
│   ├── Structure.py		#--new
│   └── __init__.py
└── utils.py

10 directories, 22 files

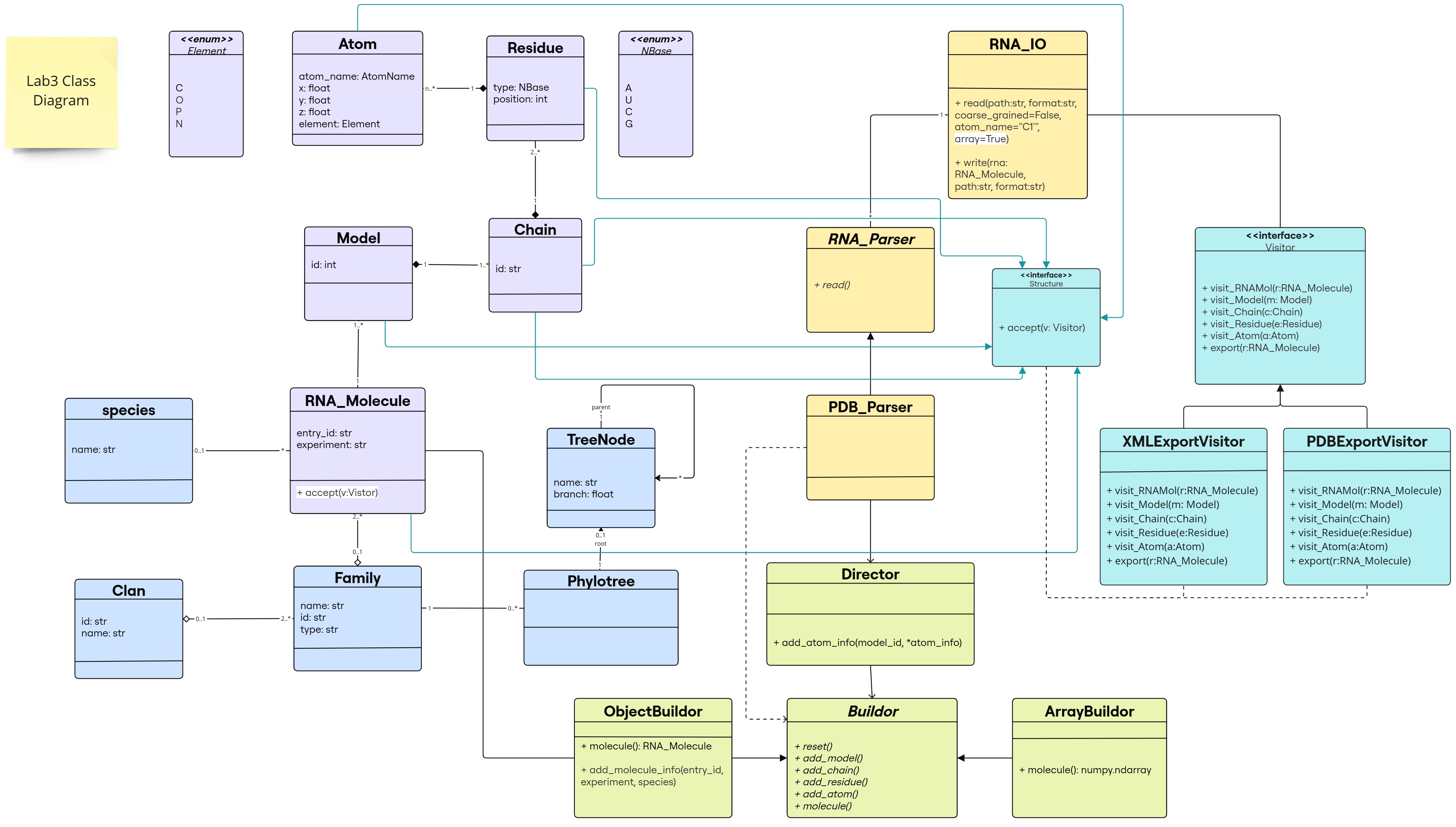

Class Diagram

Class-Diagram

The changes are following this color scheme:

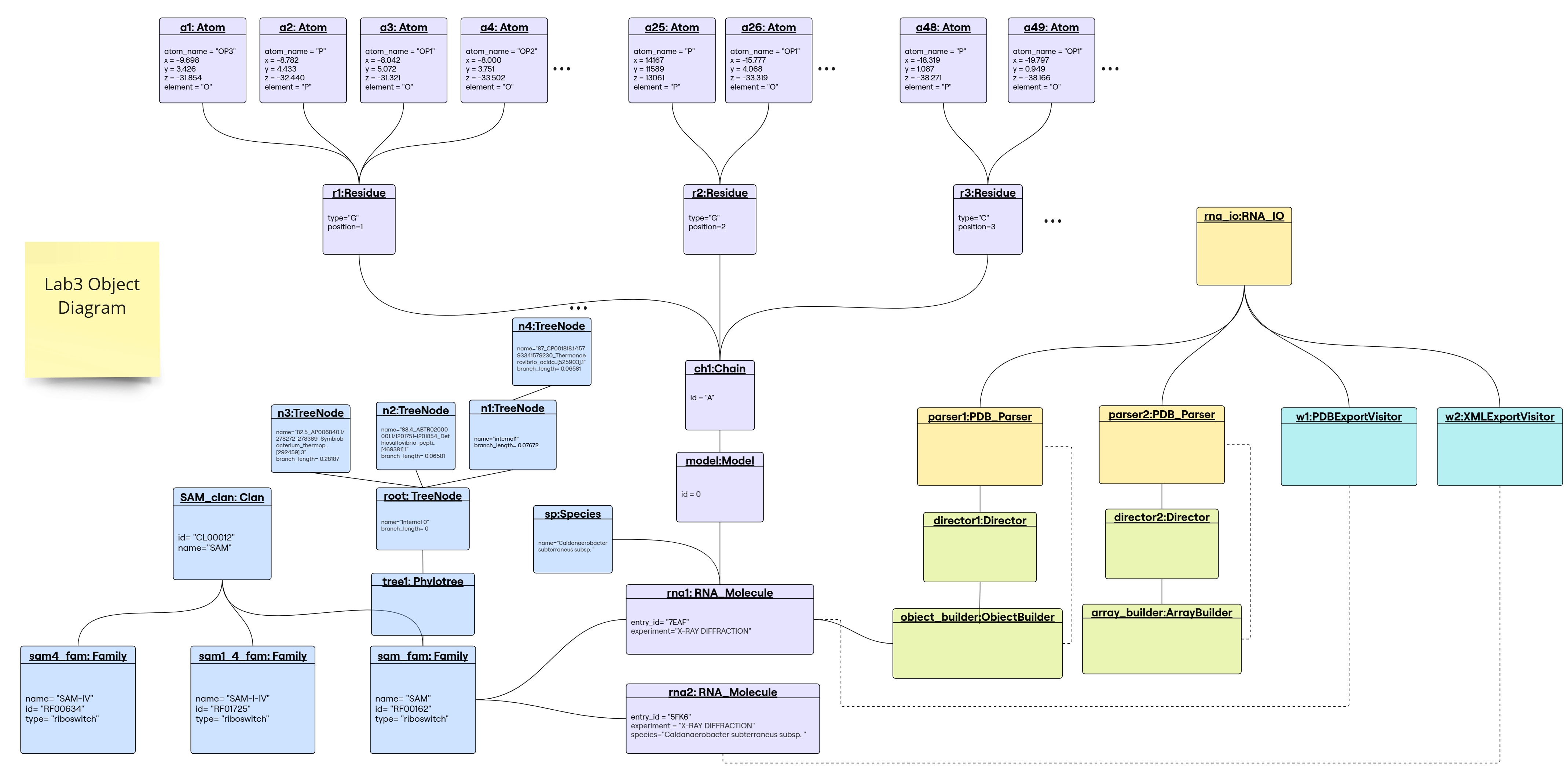

Object Diagram

Object-Diagram

1. Builder Design Pattern

In this lab, we used the Builder design pattern to separate the construction of the RNA molecule object from its representation.

Modifications done to PDB Parser:

i. Director class

ii. Builder class


    @property
    @abstractmethod
    def molecule(self):
        pass

    @abstractmethod
    def add_atom(self):
        pass

    @abstractmethod
    def add_residue(self):
        pass

    @abstractmethod
    def add_chain(self):
        pass

    @abstractmethod
    def add_model(self):
        pass

    @abstractmethod
    def reset(self):
        pass

iii. ObjectBuilder class

iv. ArrayBuilder class

2. Visitor design pattern

[!CAUTION] We have tried to implement the Visitor Design Pattern in another way previously, with an implementation that can be found in src_before/, and details can be found in the README-before.md

The visitor design pattern is implemented to be able to export an RNA object into various file formats: PDB and PDBML/XML. The aim of using this pattern is to perform this operation without adding this functionality in the RNA_Molecule class itself, but creates a new class that will be able to visit an RNA object and perform the export operation.

Modifications done to previous implementation:

As defined in the lab2, The PDB_Writer class was reposnible for generating the PDB file. The followed logic is to flatten an RNA object into primitive datatypes that will be used directly while writing the PDB file, a helper function was implemented in processor submodule.

In the current lab:

PDB_Writer PDBExportVisitor
implements RNA_Writer interface to enforce a method implements Visitor interface to enforce a method
uses flatten_to_dict method from processor submodule uses visit methods: visit_Atom, visit_Residue, visit_Chain, visit_Model, visit_RNA_Molecule to extract the info in a file-format-specific format
write method: RNA_Molecule -> None (writes to file) export method: RNA_Molecule -> None (uses visit methods to write the file)
uses RNA_IO interface uses RNA_IO interface

Generally, we can see that this pattern resembles the previous implementation, but with a more structured way of extracting the information needed to write the file. It is thus split into different methods to allow formatting the information at different “structural” levels of the RNA object. Overall, the same user interface is maintained, and this is how to formally write the file:

mol: RNA_Molecule #suppose a declared instance of RNA_Molecule
rna_io=RNA_IO()
rna_io.write(mol, "7eaf_object.xml",'PDBML')

Slight intro and background explaining the design:

The visitor design pattern is composed of the following elements:

entities type description
Structure interface defines the accept method that will be implemented by the concrete elements of the object structure (objects building RNA_Molecule)
Visitor interface enforce a visit method on all concrete visitors that implements it
PDBExportVisitor class implements Visitor and defines the visit method for each element of the object Structure (here only RNA_Molecule) $\leftarrow$ exports a PDB file
XMLExportVisitor class implements Visitor and defines the visit method for each element of the object Structure (here only RNA_Molecule) $\leftarrow$ exports a PDBML/XML file

i. Visitor interface

The visitor interface is defined in the visitor module and contains the following methods:

# visitor.py
class Visitor(ABC):
    @abstractmethod
    def visit_RNA_Molecule(self, rna: RNA_Molecule):
        pass
    @abstractmethod
    def visit_Model(self, model: Model):
        pass
    @abstractmethod
    def visit_Chain(self, chain: Chain):
        pass
    @abstractmethod
    def visit_Residue(self, residue: Residue):
        pass
    @abstractmethod
    def visit_Atom(self, atom: Atom):
        pass
    @abstractmethod
    def export(self, rna: RNA_Molecule):
        pass

There are 2 concrete visitors in this lab, found in submodules pdb_visitor and xml_visitor. Each of these classes implements the Visitor interface and defines all the abstract methods, to finally export the RNA object into a file format.

ii. PDBExportVisitor

# pdb_visitor.py
'''
PDBExportVisitor submodule:
---------------------------
contains the PDBExportVisitor class that implements the Visitor interface

- visit_Atom(a:Atom)-> list
- visit_Residue(r:Residue)-> list
- visit_Chain(c:Chain)-> string
- visit_Model(m:Model)-> string
- visit_RNA_Molecule(rna:RNA_Molecule)-> string
- export(rna:RNA_Molecule)-> None: writes the PDB file using previously defined visit methods
'''

Each visit returns either a list or string that follows the particular PDB format. e.g., visit_Atom returns a list that contain atom information as strings, formatted as they are represented in a PDB file..

iii. XMLExportVisitor

# xml_visitor.py
'''
XMLExportVisitor submodule:
---------------------------
contains the XMLExportVisitor class that implements the Visitor interface

- visit_Atom(a:Atom)-> list
- visit_Residue(r:Residue)-> list
- visit_Chain(c:Chain)-> list
- visit_Model(m:Model)-> string
- visit_RNA_Molecule(rna:RNA_Molecule)-> string
- export(rna:RNA_Molecule)-> None: writes the XML file using previously defined visit methods
'''

As in PDBExportVisitor, each visit method returns a list or string that follows the particular PDBML/XML format, by this we mean the attribute expressed as tags, e.g. an example of visit_Model(m) output is <PDBx:pdbx_PDB_model_num>1</PDBx:pdbx_PDB_model_num>

iv. Structure interface

this is the Component interface, as per the design pattern definition. Different ConcreteComponents classes implement this interface

In this lab, this interface is implemented within Structure.Structure submodule. It is parent of Atom, Residue, Chain, Model and RNA_Molecule classes, which are all the structural components of the RNA object. It defines the accept method that takes any Visitor type object as an argument and enforces it on all classes that implement it.

nderneath the hood, the accept method, calls the visit method of the visitor object, passing itself as an argument. This is done to allow the visitor to access the information of the object it is visiting.

class RNA_Molecule(Structure):
  ...
    def accept(self, visitor: Visitor):
        visitor.visit_RNA_Molecule(self)

class Model(Structure):
    ...
        def accept(self, visitor: Visitor):
            visitor.visit_Model(self)
...

[!WARNING] By definition of the visitor pattern, there should be overloaded methods named visit but that take different type of argument (_e.g., visit(a:Atom) and visit(r:Residue)). However, since we are using python (no support for method overloading), we will be using different method names for each type of object (which is also the commnly used strategy when implementing the visitor pattern in python).

graph TD
    A[Structure] -.-> B[Visitor]
    B -.-> C[PDB Export Visitor]
    B -.-> D[XML Export Visitor]
    style A fill:#12387F,stroke:#333,stroke-width:2px
    style B fill:#12387F,stroke:#333,stroke-width:2px
    style C fill:#12387F,stroke:#333,stroke-width:2px
    style D fill:#12387F,stroke:#333,stroke-width:2px

any object that is of class type implementing Structure will accept any Visitor type, which will call the visit method of the specific visitor instanciated

Advantages and Disadvantages

For the Builder Design Pattern

What we might consider as a disadvantage of the Builder Design Pattern over the previous implementation:

But on the other hand, it has also introduced many advantages:

For the Visitor Design Pattern

Advantages: Some of the primary goals of a visitor pattern were actually met in the previous implementation (symbolized by ✅).As previously discussed, there are equivalent notions have been found between this and the prior implementation (check visitor pattern explanation).:

Disadvantages:

  1. PDBML: the representation of archival macromolecular structure data in XML. ↩

This site is open source. Improve this page.
