This implementation is in the branch previous-model-extension
.
In this lab, we extended our previous model to include the following functionalities:

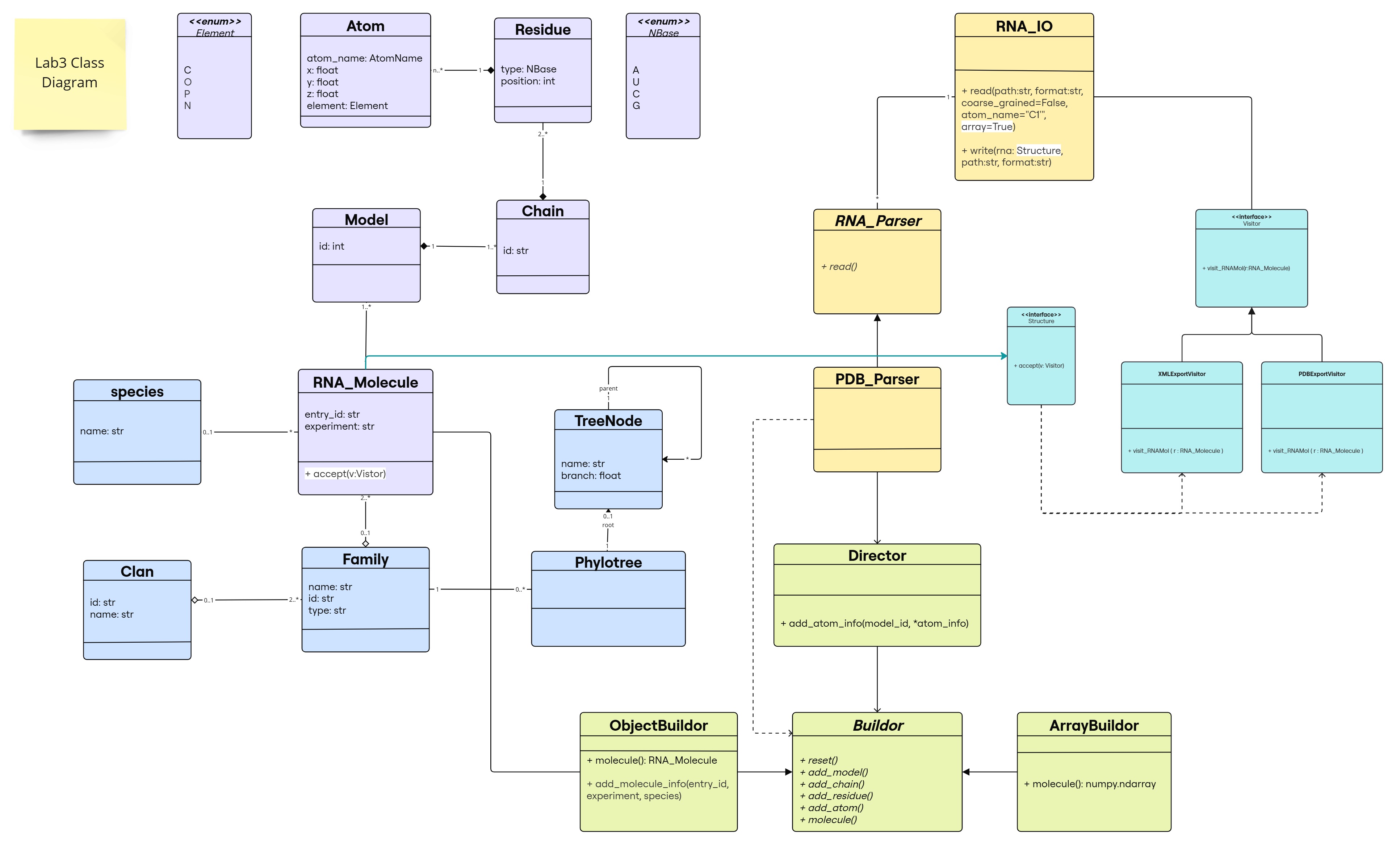

First, we kept our previous model and extended it with the minimal changes possible without using the design patterns.
The new changes are highlighted in white; note that flattenMolecule_to_dict()
is a new method to provide an extra utility to the Processor class, not mandatory for the implementation (e.g., some libraries like numpy, pandas, etc. provide similar functionalities that transforms their main objects to different types of data structures).
For this, we added a function in the Processor
class called: createArray()
that returns the required numpy array representation of an RNA Molecule
that can have multiple models.
Note: In our previous implementation, the parser will store the atom information in a list atoms
inside the Processor
class.
createArray() in Processor
class:
(number of models, max_residues_no, max_atoms_per_residue_no, 3)
read() in PDB_Parser
class:
We added a boolean argument array
to the read()
function and set it to True
by default. If the argument is True
, the function will return the numpy array representation of the molecule, otherwise it will create the molecule object as before. We did not change anything in the read()
function, we just added the following at the end:
if array:
return processor.createArray()
else:
return processor.createMolecule()
Code Usage
An example can be found in the notebook reading.ipynb from the other branch.
We read a molecule that contains 1 model and another molecule that contains multiple models, and showed the resulting arrays. A brief example:
rna_io=RNA_IO()
pdb_path_test=pathify_pdb("7eaf")
mol=rna_io.read(pdb_path_test, "PDB")
print(mol.shape)
print(mol[0, -1, 0, :])
The output:
(1, 94, 24, 3)
[-10.06 7.177 -49.234]
File format description:
An PDBML file is an XML file that contains protein/nucleic acid structure information within an xml format. This is an efficient data storing format is widely used in databases and software tools to store and exchange data files in a structured manner. It was introduced to PDBe as the “PDBML” format by Westbrook et al. in a 2005 in a paper published in Bioinformatics entitled “PDBML: the representation of archival macromolecular structure data in XML”1.
In python, writing and handling xml files is done here through 2 modules in our code: xml.etree.ElementTree
and xml.dom.minidom
. The first module is used to create the xml file and the second module is used to prettify the xml file (provide proper xml indentation).
Starting off by exploring this file (example used is 7eaf.xml taken from pdb), we notice the following structure
<PDBx:datablock xmlns:PDBx="http://pdbml.pdb.org/schema/pdbx-v50.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" datablockName="7EAF" xsi:schemaLocation="http://pdbml.pdb.org/schema/pdbx-v50.xsd pdbx-v50.xsd">
...
</PDBx:datablock>
with all these tags included in the file:
grep -e '^ <PDBx:' 7eaf.xml #to retrive the list
<PDBx:atom_siteCategory>
<PDBx:atom_site_anisotropCategory>
<PDBx:atom_sitesCategory>
<PDBx:atom_typeCategory>
<PDBx:audit_authorCategory>
<PDBx:audit_conformCategory>
<PDBx:cellCategory>
<PDBx:chem_compCategory>
<PDBx:chem_comp_atomCategory>
<PDBx:chem_comp_bondCategory>
<PDBx:citationCategory>
<PDBx:citation_authorCategory>
<PDBx:database_2Category>
<PDBx:diffrnCategory>
<PDBx:diffrn_detectorCategory>
<PDBx:diffrn_radiationCategory>
<PDBx:diffrn_radiation_wavelengthCategory>
<PDBx:diffrn_sourceCategory>
<PDBx:entityCategory>
<PDBx:entity_polyCategory>
<PDBx:entity_poly_seqCategory>
<PDBx:entryCategory>
<PDBx:exptlCategory>
<PDBx:exptl_crystalCategory>
<PDBx:exptl_crystal_growCategory>
<PDBx:ndb_struct_conf_naCategory>
<PDBx:ndb_struct_na_base_pairCategory>
<PDBx:ndb_struct_na_base_pair_stepCategory>
<PDBx:pdbx_audit_revision_categoryCategory>
<PDBx:pdbx_audit_revision_detailsCategory>
<PDBx:pdbx_audit_revision_groupCategory>
<PDBx:pdbx_audit_revision_historyCategory>
<PDBx:pdbx_audit_revision_itemCategory>
<PDBx:pdbx_audit_supportCategory>
<PDBx:pdbx_database_statusCategory>
<PDBx:pdbx_entity_nonpolyCategory>
<PDBx:pdbx_entity_src_synCategory>
<PDBx:pdbx_entry_detailsCategory>
<PDBx:pdbx_initial_refinement_modelCategory>
<PDBx:pdbx_nonpoly_schemeCategory>
<PDBx:pdbx_poly_seq_schemeCategory>
<PDBx:pdbx_refine_tlsCategory>
<PDBx:pdbx_refine_tls_groupCategory>
<PDBx:pdbx_struct_assemblyCategory>
<PDBx:pdbx_struct_assembly_auth_evidenceCategory>
<PDBx:pdbx_struct_assembly_genCategory>
<PDBx:pdbx_struct_assembly_propCategory>
<PDBx:pdbx_struct_conn_angleCategory>
<PDBx:pdbx_struct_oper_listCategory>
<PDBx:pdbx_struct_special_symmetryCategory>
<PDBx:pdbx_validate_close_contactCategory>
<PDBx:pdbx_validate_rmsd_bondCategory>
<PDBx:refineCategory>
<PDBx:refine_histCategory>
<PDBx:refine_ls_restrCategory>
<PDBx:refine_ls_shellCategory>
<PDBx:reflnsCategory>
<PDBx:reflns_shellCategory>
<PDBx:softwareCategory>
<PDBx:space_groupCategory>
<PDBx:space_group_symopCategory>
<PDBx:structCategory>
<PDBx:struct_asymCategory>
<PDBx:struct_connCategory>
<PDBx:struct_conn_typeCategory>
<PDBx:struct_keywordsCategory>
<PDBx:struct_refCategory>
<PDBx:struct_ref_seqCategory>
<PDBx:symmetryCategory>
Westbrook J, Ito N, Nakamura H, Henrick K, Berman HM. Bioinformatics, 2005, 21(7):988-992. PubMed:15509603 full text
The <PDBx:atom_siteCategory>
tag contains all the information about the atoms in the structure, including all the hierarchical information model > chain > residue > atom. Thus the structure is solely defined by a list of atoms, in this format each will be represented by a tag <PDBx:atom_site>
.
<PDBx:datablock xmlns:PDBx="http://pdbml.pdb.org/schema/pdbx-v50.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" datablockName="7EAF" xsi:schemaLocation="http://pdbml.pdb.org/schema/pdbx-v50.xsd pdbx-v50.xsd">
<PDBx:atom_siteCategory>
<PDBx:atom_site id="1">
...
</PDBx:atom_site>
<PDBx:atom_site id="2">
...
</PDBx:atom_siteCategory>
</PDBx:datablock>
[!IMPORTANT] The atom_siteCategory tag is the only category that reflects the information that we’re capturing in this library, whether thorugh the RNA_Molecule object or the numpy array representation of it. This is the only category that will be included in the xml file. Others include information about bonds, symmetry, experimental setting and other metadata that is not captured in our object.
This is how the hierarchy leading to an atom representation is portrayed in the .xml
file.
PDBx:datablock
├── datablockName
├── xsi:schemaLocation
└── PDBx:atom_siteCategory
└── PDBx:atom_site
├── id
├── PDBx:B_iso_or_equiv
├── PDBx:Cartn_x
├── PDBx:Cartn_y
├── PDBx:Cartn_z
├── PDBx:auth_asym_id
├── PDBx:auth_atom_id
├── PDBx:auth_comp_id
├── PDBx:auth_seq_id
├── PDBx:group_PDB
├── PDBx:label_alt_id
├── PDBx:label_asym_id
├── PDBx:label_atom_id
├── PDBx:label_comp_id
├── PDBx:label_entity_id
├── PDBx:label_seq_id
├── PDBx:occupancy
├── PDBx:pdbx_PDB_model_num
└── PDBx:type_symbol
Notice a slight difference between the representation of an atom with $occupancy=1$ and an atom with $occupancy<1$ (having an altrnate location). The difference is the presence of the label_alt_id
tag. This will be taken care of while writing the file. This being said, each alternative location of an atom is cosidered a different atom in the file (with PDBx:atom_site id
being $+1$ the id of the previous alternate location).
Atom with no alternative location | Atom with alternative location |
---|---|
|
|
in this example id 171 is alt location B of the same atom in 170, and shows different occupancy
Implementation: object to xml
Thanks to the hierarchical class design of the molecule object, we’re able to retrieve all information needed describing an atom, for each atom in the molecule.
In porcessor, this method flattenMolecule_to_dict
takes an object and returns a list of atom dictionaries, where the keys of each dictionary are named exactly as the tags in the xml file.
[!NOTE] It practically has the same behavior as
flattenMolecule
but returns a list of dictionaries instead of a list of atom info and objects (allowing diverse output formats).
This way, we can easily create the xml file by iterating over the list of atoms and creating the corresponding tags.
def flattenMolecule_to_dict(self,rna_molecule:RNA_Molecule):
'''
rna_molecule: RNA_Molecule object -> RNA molecule to be flattened -> list of atom dictionaries
'''
atoms_list = []
for model_num,_ in enumerate(rna_molecule.get_models()): #--looping through all models
model=rna_molecule.get_models()[_] # --model object from dict key
for chain in model.get_chains().values(): #--looping through all chains
for residue in chain.get_residues().values(): #--looping through all residues
for atom_key, atom in residue.get_atoms().items(): #--looping through all atoms
atom_id, alt_id = atom_key # unpacking atom key (alt_id is '' if no alt location)
# --keys defined identically to pdbml format, values extracted directly from atom object
atom_data = {
"atom_id": str(len(atoms_list) + 1), # Assign a sequential ID
"B": str(atom.temp_factor),
"x": str(atom.x),
"y": str(atom.y),
"z": str(atom.z),
"chain_id": chain.id,
"atom_id": atom_id,
"residue_type": residue.type.name,
"residue_pos": str(residue.position),
"alt_id": None if alt_id == "" else alt_id,
"occupancy": str(atom.occupancy),
"model_no": model_num+1,
"atom_element": atom.element.name
}
atoms_list.append(atom_data)
return atoms_list
To convert to PDBML, xml formatting private functions have been implemented in PDBML_Writer
submodule.
# --helper methods
def _wrap_str_to_xml(self,s,name='pdbml_output.xml'):
with open(name, "w") as f:
f.write(s)
def _format_atom_info(self, atoms_list,entry_id):
'''
formats a list of atoms dicts into XML format
'''
s='''<?xml version="1.0" encoding="UTF-8" ?>
<PDBx:datablock datablockName="'''+entry_id+'''"
xmlns:PDBx="http://pdbml.pdb.org/schema/pdbx-v50.xsd"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://pdbml.pdb.org/schema/pdbx-v50.xsd pdbx-v50.xsd">'''
s+='\n\t<PDBx:atom_siteCategory>\n'
for atom in atoms_list:
s+='\t\t<PDBx:atom_site id="'+atom["atom_id"]+'">\n'
s+='\t\t\t<PDBx:B_iso_or_equiv>'+str(atom['B'])+'</PDBx:B_iso_or_equiv>\n'
s+='\t\t\t<PDBx:Cartn_x>'+str(atom['x'])+'</PDBx:Cartn_x>\n'
s+='\t\t\t<PDBx:Cartn_y>'+str(atom['y'])+'</PDBx:Cartn_y>\n'
s+='\t\t\t<PDBx:Cartn_z>'+str(atom['z'])+'</PDBx:Cartn_z>\n'
s+='\t\t\t<PDBx:auth_asym_id>'+atom['chain_id']+'</PDBx:auth_asym_id>\n'
s+='\t\t\t<PDBx:auth_atom_id>'+atom['atom_id']+'</PDBx:auth_atom_id>\n'
s+='\t\t\t<PDBx:auth_comp_id>'+atom['residue_type']+'</PDBx:auth_comp_id>\n'
s+='\t\t\t<PDBx:auth_seq_id>'+str(atom['residue_pos'])+'</PDBx:auth_seq_id>\n'
s+='\t\t\t<PDBx:group_PDB>ATOM</PDBx:group_PDB>\n'
if atom['alt_id'] is not None:
s+='\t\t\t<PDBx:label_alt_id xsi:nil="true" />\n'
else:
atom['alt_id']='A'
s+='\t\t\t<PDBx:label_asym_id>'+atom['alt_id']+'</PDBx:label_asym_id>\n'
s+='\t\t\t<PDBx:label_atom_id>'+atom['atom_id']+'</PDBx:label_atom_id>\n'
s+='\t\t\t<PDBx:label_comp_id>'+atom['residue_type']+'</PDBx:label_comp_id>\n'
s+='\t\t\t<PDBx:label_entity_id>1</PDBx:label_entity_id>\n'
s+='\t\t\t<PDBx:label_seq_id>'+str(atom['residue_pos'])+'</PDBx:label_seq_id>\n'
s+='\t\t\t<PDBx:occupancy>'+str(atom['occupancy'])+'</PDBx:occupancy>\n'
s+='\t\t\t<PDBx:pdbx_PDB_model_num>'+str(atom['model_no'])+'</PDBx:pdbx_PDB_model_num>\n'
s+='\t\t\t<PDBx:type_symbol>'+atom['atom_element']+'</PDBx:type_symbol>\n'
s+='\t\t</PDBx:atom_site>\n'
s+='\t</PDBx:atom_siteCategory>\n'
s+='</PDBx:datablock>'
return s
Code usage:
mol: RNA_Molecule #suppose a declared instance of RNA_Molecule
rna_io=RNA_IO()
rna_io.write(mol, "7eaf_object.xml",'PDBML')
example output:
cat 7eaf_object.xml
<?xml version="1.0" encoding="UTF-8" ?>
<PDBx:datablock datablockName="7EAF"
xmlns:PDBx="http://pdbml.pdb.org/schema/pdbx-v50.xsd"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://pdbml.pdb.org/schema/pdbx-v50.xsd pdbx-v50.xsd">
<PDBx:atom_siteCategory>
<PDBx:atom_site id="OP3">
<PDBx:B_iso_or_equiv>110.87</PDBx:B_iso_or_equiv>
<PDBx:Cartn_x>-9.698</PDBx:Cartn_x>
<PDBx:Cartn_y>3.426</PDBx:Cartn_y>
<PDBx:Cartn_z>-31.854</PDBx:Cartn_z>
<PDBx:auth_asym_id>A</PDBx:auth_asym_id>
<PDBx:auth_atom_id>OP3</PDBx:auth_atom_id>
<PDBx:auth_comp_id>G</PDBx:auth_comp_id>
<PDBx:auth_seq_id>1</PDBx:auth_seq_id>
<PDBx:group_PDB>ATOM</PDBx:group_PDB>
<PDBx:label_asym_id>A</PDBx:label_asym_id>
<PDBx:label_atom_id>OP3</PDBx:label_atom_id>
<PDBx:label_comp_id>G</PDBx:label_comp_id>
<PDBx:label_entity_id>1</PDBx:label_entity_id>
<PDBx:label_seq_id>1</PDBx:label_seq_id>
<PDBx:occupancy>1.0</PDBx:occupancy>
<PDBx:pdbx_PDB_model_num>1</PDBx:pdbx_PDB_model_num>
<PDBx:type_symbol>O</PDBx:type_symbol>
</PDBx:atom_site>
...
a minor addition to RNA_IO
class was made to include the option of writing in PDBML format.
class RNA_IO:
def __init__(self):
...
self.__writers={"PDB": PDB_Writer(),'PDBML': PDBML_Writer(),'XML': PDBML_Writer()}
Parallelism with PDB_Writer
rna_io.write(mol, “7eaf_object.xml”,’PDBML’) #also works by specifying XML rna_io.write(mol, “7eaf_object.pdb”,’PDB’)
| PDB_Writer | PDBML_Writer |
|------------|--------------|
| inherits RNA_Writer abstract class | inherits RNA_Writer abstract class |
| `write(molecule: RNA_Molecule, file_path: str)` | `write(molecule: RNA_Molecule, file_path: str)` |
| takes an RNA_Molecule object | takes an RNA_Molecule object |
| uses processor instance to get the atom information | uses processor instance to get the atom information |
| uses processor.flattenMolecule() | uses processor.flattenMolecule_to_dict() |
| has format specific private method `_format_atom_info()` and `_format_molecule_info` | has format specific private method `_format_atom_info()` and `_wrap_str_to_xml()` |
| writes the pdb file | writes the pdbml file |
## Main Implementation using Design Patterns
The implementation of the classes is available in the [src](https://github.com/rna-oop/2425-m1-geniomhe-group-6/tree/main/lab3/src) directory in the `main` branch.
### Demo
For a demonstration of the Builder and Visitor Design Patterns, you can check the notebook [reading-writing.ipynb](/2425-m1-geniomhe-group-6/lab3/demo/reading.ipynb)
[](./demo/reading_writing.ipynb)
### Library Structure
In this lab, we added `Processing` module that contains the classes of the `Builder Design Pattern` and `visitors_writers` module that contains the classes of the `Visitor Design Pattern`inside `IO` module.
The classes are organized in modules and submodules as follows:
```text
.
├── Families
│ ├── __init__.py
│ ├── clan.py
│ ├── family.py
│ ├── species.py
│ └── tree.py
├── IO
│ ├── RNA_IO.py
│ ├── __init__.py
│ ├── parsers
│ │ ├── PDB_Parser.py
│ │ ├── RNA_Parser.py
│ │ ├── __init__.py
│ └── visitor_writers
│ ├── __init__.py
│ ├── pdb_visitor.py
│ ├── visitor.py
│ └── xml_visitor.py
├── Processing
│ ├── ArrayBuilder.py
│ ├── Builder.py
│ ├── Director.py
│ ├── ObjectBuilder.py
│ └── __init__.py
├── Structure
│ ├── Atom.py
│ ├── Chain.py
│ ├── Model.py
│ ├── RNA_Molecule.py
│ ├── Residue.py
│ └── __init__.py
└── utils.py
10 directories, 21 files
The changes are following this color scheme:
In this lab, we used the Builder
design pattern to separate the construction of the RNA molecule object from its representation.
Modifications done to PDB Parser
:
Added a new argument array=True
to the read()
function to return the numpy array representation of the molecule.
Processor
class to create the molecule object when reading the PDB file, we used the Director
class and the corresponding Builder
class.
director = Director()
if array == True:
builder = ArrayBuilder()
else:
builder = ObjectBuilder()
director.builder = builder
processor.molecule_info()
that used to store the molecule info (id, experiment, species), we added a new method in the ObjectBuilder
class called add_molecule_info()
that adds the molecule info to the molecule object, and we used it in the PDB_Parser
’s read() function
as follows:
if array==False:
builder.add_molecule_info(*molecule_info)
Instead of processor.atom_info
that used to store the atom info, we now use director.add_atom_info(model_id, *atom_info)
which serves as a recipe to build the corresponding molecule.
processor.createMolecule()
that creates only an object, we return builder.molecule
to get the built molecule that can be an object or a numpy array depending on the builder used.The Director
class serves as a director for the Builder
classes.
__builder
: The builder object that will be used to build the object. Initialized to None
.builder
: Returns the builder object.builder
: Sets the builder object after checking if it is an instance of the Builder
class.add_atom_info
: serves as a common recipe on how to build the molecule for the different Builder
classes:
def add_atom_info(self, model_id, *atom_info):
atom_name, x, y, z, element, residue_name, residue_id, chain_id, altloc, occupancy, temp_factor, i_code, charge = atom_info
self.builder.add_model(model_id)
self.builder.add_chain(chain_id)
self.builder.add_residue(residue_name, residue_id, i_code)
self.builder.add_atom(atom_name, x, y, z, element, altloc, occupancy, temp_factor, charge)
Parser
and calls the corresponding methods in the builder object in a specific order to add the model, chain, residue, and atom information.The Builder
class is an interface, implemented as an abstract class with all its methods being abstract.
It defines the methods that the concrete Builder
classes should implement.
@property
@abstractmethod
def molecule(self):
pass
@abstractmethod
def add_atom(self):
pass
@abstractmethod
def add_residue(self):
pass
@abstractmethod
def add_chain(self):
pass
@abstractmethod
def add_model(self):
pass
@abstractmethod
def reset(self):
pass
molecule
method is a property that should return the built molecule object.reset
method is used to reset the builder object to its initial state.ObjectBuilder
class is a concrete builder class that implements the Builder
interface.It is responsible for constructing the RNA molecule object.
__molecule
: The RNA molecule object that is being built.Methods:
reset
: Resets the builder object to its initial state:
molecule
: @property, returns the built molecule object and resets the builder object.add_model
:
add_chain
:
add_residue
:
add_atom
:
add_molecule_info
:
The ArrayBuilder
class is a concrete builder class that implements the Builder
interface.
(number of models, max_residues_no, max_atoms_per_residue_no, 3)
__array
: A dictionary that stores the atom coordinates for each residue in the molecule.__model_id
: The current model id.__residue_id
: The current residue id.__prev_atom
: A list that stores the previous atom name and occupancy to handle alternate locations.Methods:
reset
: Resets the builder object to its initial state:
add_model
: Sets the model_id attribute to the given model_id.add_chain
: Does nothing.add_residue
: Sets the residue_id attribute to the given residue_id and initializes the atom list for the residue.add_atom
: Adds the atom coordinates to the atom list of the current residue in the array dictionary.
molecule
: @property, returns the numpy array representation of the molecule.
dictionary
:
(model_id, residue_id)
and the values are lists of atom coordinates.The visitor design pattern aims to separate the algorithm from the object structure on which it operates. In this case we want to be able to operate on RNA to export it into various file formats: PDB and PDBML/XML. Our aim is to perform this without adding a functionality to the RNA_Molecule
class itself (through decoupling), but rather to create a new class that will be able to visit the RNA molecule and perform the export functionality.
Modifications done to PDB_Writer
As defined in the lab2, The PDB_Writer
class was reposnible for generating the PDB file, we are compare it here directly with PDBExportVisitor class in the visitor design pattern, which has the same responsibility.
The same functionalities writing the file persists, however, only some technicalities of handeling them are changed to account for class and method terminology and manipulation consistency with the way the Visitor pattern in defined. On the other hand, it’s almost exactly identical to the previous implementation (more on that in the next section).
In addition, since the flattening methods in processor are not really instance-related methods, we have moved these to utils
(flattenMolecule
and flattenMolecuke_to_dict
) because it would be interesting to allow the user to use these functions directly if needed (like in torch).
PDB_Writer | PDBExportVisitor |
---|---|
implements RNA_Writer interface to enforce a method |
implements Visitor interface to enforce a method |
no caching | no caching |
write method |
visit_RNA_Molecule method |
takes RNA_Molecule object |
takes RNA_Molecule object |
generates PDB file | generates PDB file |
uses _format_atom_info method |
uses _format_atom_info method |
uses flattening through flattenMolecule , method of processor (static behavior) |
uses flattening through flattenMolecule_to_dict , added function to utils |
[!NOTE] As can be seen, in our previous decoupled design,
PDB_Writer
met an equivalent implementation of theVisitor
design pattern: every row in the table above is a direct correspondence.
Slight differences are within what the Visitor
design pattern enforces, which is the visit
method that will be called on the RNA_Molecule
object, and the accept
method that will be called on the RNA_Molecule
object to accept the visitor.
This design pattern thus can be used in the following way:
# rna_Molecule: RNA_Molecule
pdb_exporter = PDBExportVisitor()
rna_Molecule.accept(pdb_exporter)
xml_exporter = XMLExportVisitor()
rna_Molecule.accept(xml_exporter)
In order to maintain an efficient user-agnostic interface that keeps export encapsulated, we have maintained the same RNA_IO
class, with the same write
method, that will take care of the visitor pattern implementation.
First, it declares visitor instances in one of its rna_io object’s attributes:
self.__writers={"PDB": PDBExportVisitor(), "XML": XMLExportVisitor(), "PDBML": XMLExportVisitor()}
def write(self, structure, format):
if format not in self.__writers:
raise ValueError(f"Format {format} is not supported")
exporter=self.__writers[format]
structure.accept(exporter)
Slight intro and background explaining the design:
The visitor design pattern is composed of the following elements:
entities | type | description |
---|---|---|
Structure |
interface | defines the accept method that will be implemented by the concrete elements of the object structure |
RNA_Molecule |
class | implements the Structure interface and defines the accept method that will call the visit method of the visitor, our class type defined throughout the project |
Visitor |
interface | enforce a visit method on all concrete visitors that implements it |
PDBExportVisitor |
class | implements Visitor and defines the visit method for each element of the object Structure (here only RNA_Molecule ) $\leftarrow$ exports a PDB file |
XMLExportVisitor |
class | implements Visitor and defines the visit method for each element of the object Structure (here only RNA_Molecule ) $\leftarrow$ exports a PDBML/XML file |
The visitor interface is defined in the visitor
module and contains a single method, visit_RNA_Molecule
, which will be implemented by the concrete visitors
# visitor.py
class Visitor(ABC):
@abstractmethod
def visit_RNA_Molecule(self, rna: RNA_Molecule):
pass
There are 2 concrete visitors in this lab, found in submodules pdb_visitor
and xml_visitor
. Each of these classes implements the Visitor
interface and defines the visit_RNA_Molecule
method, which will perform the export operation.
PDBExportVisitor
# pdb_visitor.py
class PDBExportVisitor(Visitor):
def visit_RNA_Molecule(self, rna: RNA_Molecule):
# export the RNA molecule to a PDB file
...
this class has some helper methods in order to format the data in the PDB format, which are private methods( start with `_ and not part of the class) not meant to be accessed.
XMLExportVisitor
# xml_visitor.py
class XMLExportVisitor(Visitor):
def visit_RNA_Molecule(self, rna: RNA_Molecule):
# export the RNA molecule to a PDBML/XML file
...
Formatting into XML is done manually without the use of xml
library.
Both classes use flattening functions provided in utils
to convert the RNA_Molecule object into a list or a dictionary, which can then be used to generate the file (primitive data types to be used instead of objects, makes it more flexible to implement other similar visit methods for other types of objects).
this is the Component interface, as per the design pattern definition. Different ConcreteComponents classes implement this interface
In this implementation, the Structure
interface is implemented by the RNA_Molecule
module (because RNA_Molecule will implement it) and defines the accept
method that takes any Visitor as an argument and enforces it on ConcreteElement classes that implement it.
Underneath the hood, the accept
method of the RNA_Molecule
class will call the visit
method of the visitor class, which will then perform the export operation.
class RNA_Molecule(Structure):
...
def accept(self, visitor: Visitor):
visitor.visit_RNA_Molecule(self)
[!WARNING] since python does not provide direct overloading, we need to define a method for each element of the object structure that the visitor will visit. In this case, we have the
RNA_Molecule
class (instead of having severalvisit
methods that take different types of arguments like in java, it’ll bevisit_RNA_Molecule()
).
In our case, there is only one ConcreteComponent
that implements Structure, which is the RNA_Molecule
class, however, this decoupled design allows us at any point to define different concrete Structure classes (e.g. different types of molecules like DNA_Molecule, protein_Molecule, etc. or different RNA mol representation objects like a RNA_ndarray class)
The logic RNA_Molecule will accept any visitor type, which will call the visit method for RN_Molecule of the specific visitor instanciated
graph TD
A[RNA Molecule] -.-> B[Visitor]
B -.-> C[PDB Export Visitor]
B -.-> D[XML Export Visitor]
style A fill:#12387F,stroke:#333,stroke-width:2px
style B fill:#12387F,stroke:#333,stroke-width:2px
style C fill:#12387F,stroke:#333,stroke-width:2px
style D fill:#12387F,stroke:#333,stroke-width:2px
What we might consider as a disadvantage of the Builder Design Pattern over the previous implementation:
createArray()
in the Processor
class to return the numpy array representation of the molecule.But on the other hand, it has also introduced many advantages:
As previously discussed, equivalent notions have been found between this and the prior implementation (check visitor pattern explanation)
There is 2 advantages of the Visitor Design Pattern, only thanks to its indirect relation to the object structure (accept
method that takes a Visitor
object):
RNA_Molecule
object, a functionality that we wanted to have access to initially while keeping the object clean and decoupled. Noting that it can take any visitor type, it allows for a more flexible and extensible design.Structure
parent, we can add as many as children as we want in the future without needing to worry about decoupling them everytime we implement them, but rather directly overriding the accept
method in the new class and providing Visitor
with an overloaded visit
method (efficiency in terms of code writing).PDBML: the representation of archival macromolecular structure data in XML. ↩
